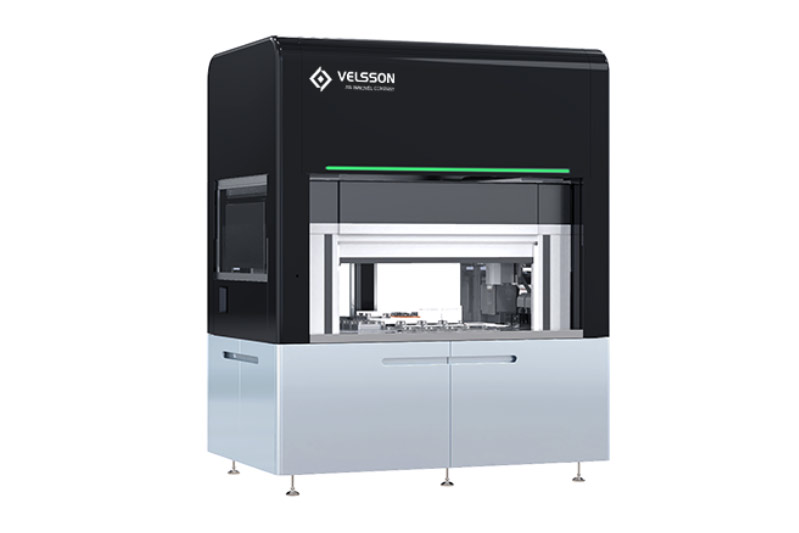

INNOSMART® MONOCLONE – Smart Monoclonal Picking for Faster Breakthroughs

Accelerate Discovery Without Compromising Precision

The INNOSMART® MONOCLONE is a fully automated monoclonal picking platform that streamlines seeding, cultivation, and selection in one compact system. By combining intelligent image recognition, adaptive picking height, and high-throughput processing, your lab can achieve unmatched accuracy while minimizing manual labor and contamination risks.

Features

  • Integration : Integrate multiple types of modules such as 4-channel pipetting, microplate robot, 96-channel picker, sterile pumping, etc.
  • High Throughput : Ultra-high-throughput monoclonal selection, >30,000 clones/day.
  • Picker CIP : The automatic CIP function ensures the sterility of pickers, and prevents cross-contamination at nucleic acid level.
  • Process Editor : Flexible process editing，agile process upgrade and change.
  • Laminar Flow : A-level laminar flow environmental protection to ensure the safety of experiment.
  • International Standards : 21 CFR Part 11.
  • Exception Handling : Smart exception handling.

Key Specifications

  • Throughput: 1,500+ clones/hour
  • Capacity: 30,000+ samples/day
  • Accuracy: >99% effective picking rate
  • Contamination Control: CIP, laminar flow, UV sterilization
  • Footprint: 209 × 136 × 238 cm (83 × 54 × 94 in)

Who Benefits Most?

  • Biopharma R&D teams scaling antibody discovery.
  • GMP manufacturing facilities needing compliance-ready automation.
  • Academic research labs accelerating monoclonal workflows without adding staff.

Solutions for Your Lab’s Biggest Challenges

1. Increase Throughput Without Sacrificing Quality

  • Picks 1,500+ monoclones per hour and processes 30,000+ samples per day.
  • >99% effective picking rate with laser-guided distance measurement and intelligent imaging.
  • Dual picking stations and a 96-channel picking head for parallel efficiency.

2. Maintain Sterility & Compliance

  • CIP (Clean-in-Place) platform with automated cleaning, disinfection, and high-temperature drying.
  • Laminar flow design with FIFO air management to prevent cross-contamination.
  • UV sterilization and polished surfaces for easy decontamination and reduced microbial growth.

3. Adapt Quickly to New Workflows

  • Flexible settings for clone numbers and acquisition parameters.
  • Fully editable workflows and process templates for R&D adaptability.
  • Integrated liquid handling for culture medium replenishment, coating, and sampling.

4. Integrate Seamlessly with Your Lab’s Automation

  • Compact footprint (209 × 136 × 238 cm) with double-sided lift doors and conveyor belt.
  • Compatible with external automation equipment.
  • Intelligent well plate gripper robot for efficient loading/unloading.

5. Trace Every Step for Data Integrity

  • Comprehensive software with real-time monitoring, intelligent image storage, and audit trails.
  • Records operator logins, material transfers, equipment status, and alerts.
  • Stores original image data for full traceability in regulated environments.

Applications

  • Biomedicine, Screening of Working Strains
  • Synthetic Biology, Chassis Cell Screening
  • Life Science, Microbial Strain Screening
  • Genetic Engineering, Selection/Inoculation of Transformants
  • Small Molecule Drugs, High-throughput Expression Strain Screening
