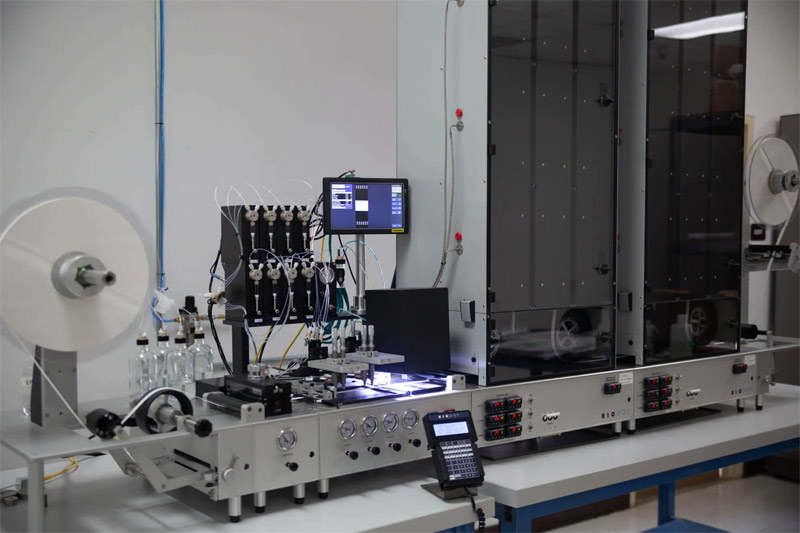

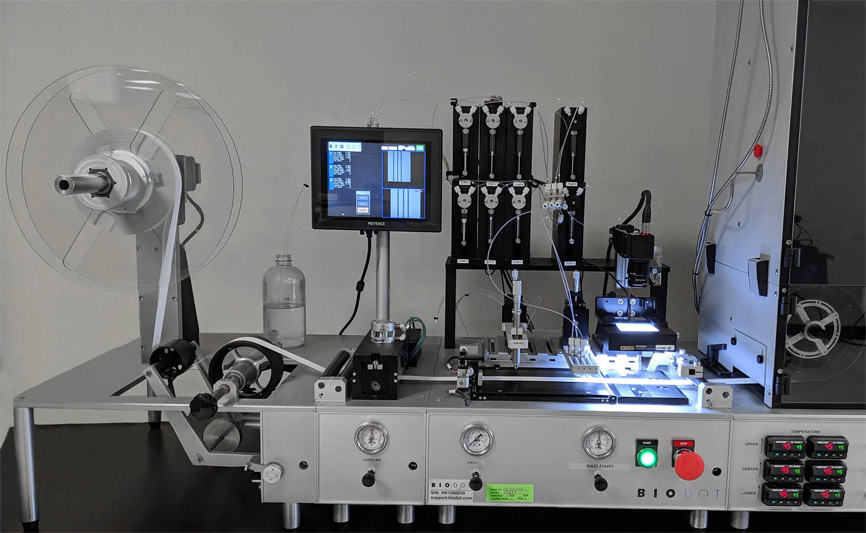

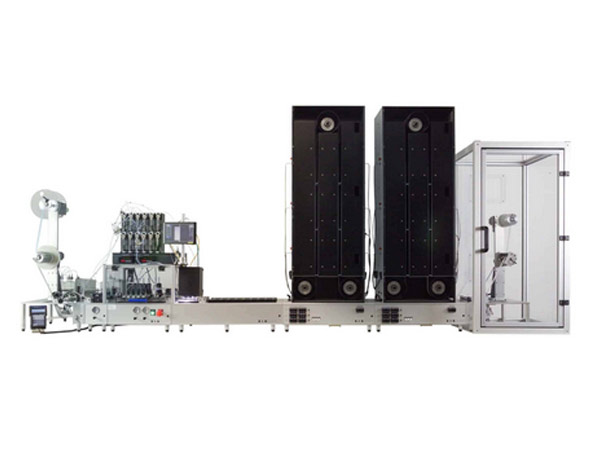

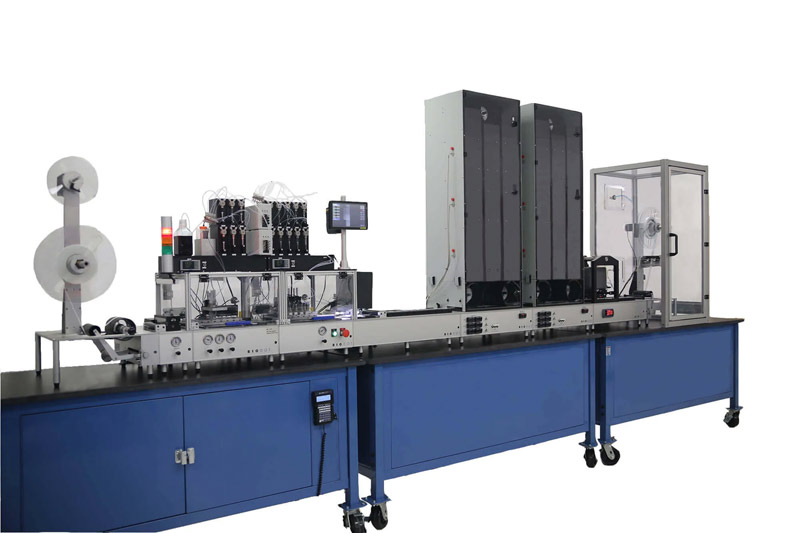

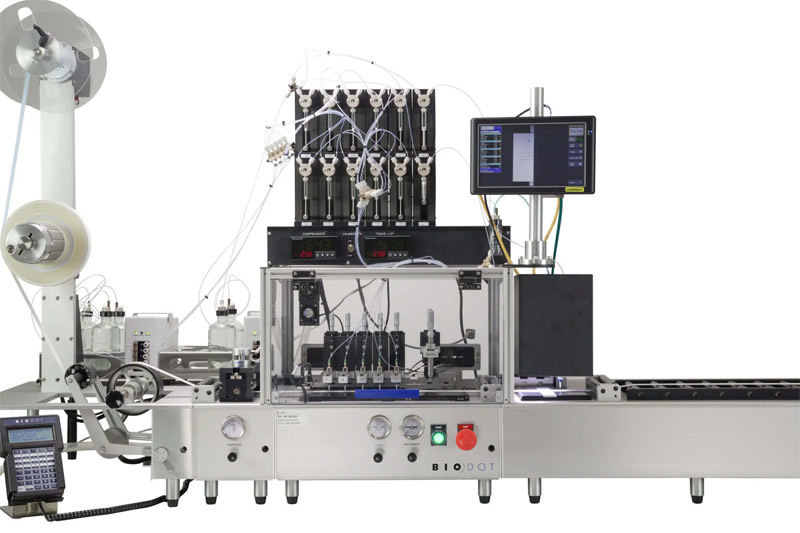

RR120™ Web Handling System
RR120 is a high-volume system for printing, coating, inspecting, and drying rolls. Its modular design offers flexibility for specific applications and needs.
Features
- 1 – 7 Dispensing Channels (Tandem Pumps)
- BioJet, FrontLine and AirJet Dispensing Technologies

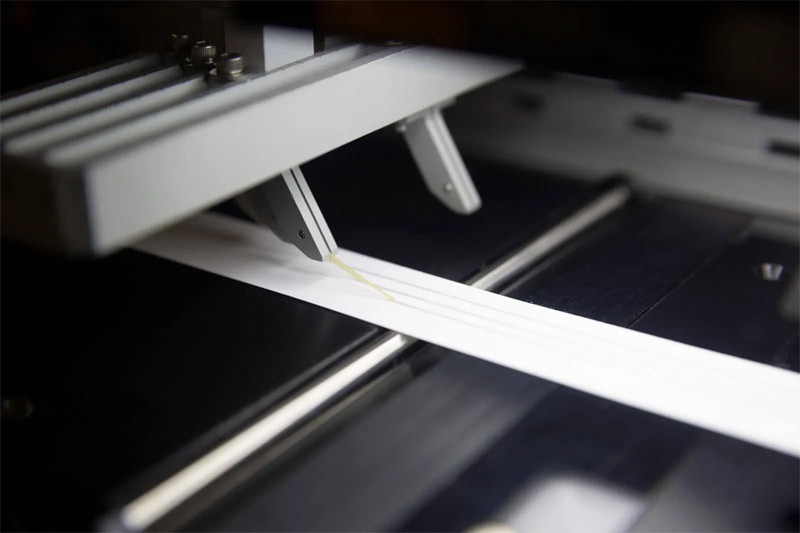

- Print up to 7 Lines Simultaneously
- Automated Dispense Tracking for Precision Line Placement
- Perform Multiple Applications on One System

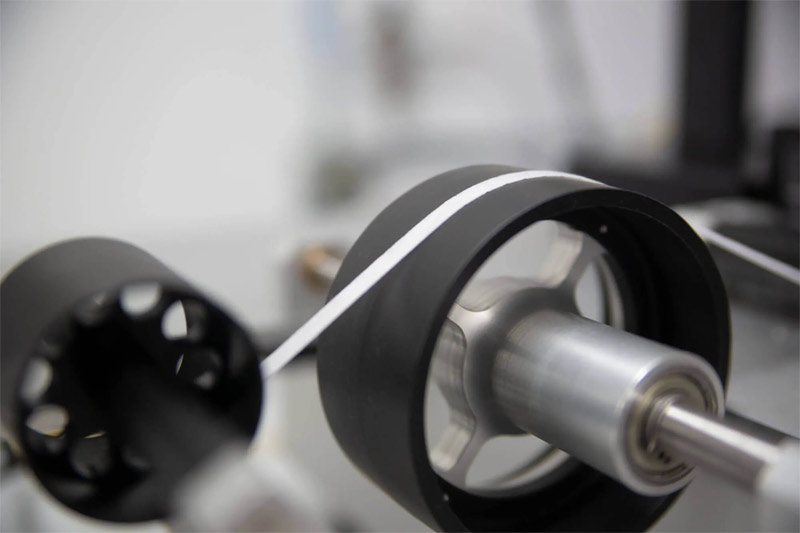

- Adjustable Tension for Handling Backed/Unbacked Membranes
- Easy to Set up, Operate and Maintain
- Data Storage to Support Multiple Applications
- Many System Options Can be Upgraded after Purchase
Applications
- Lateral Flow
- Dry Chemistry Coating
- Custom Applications
Options
- Choice of Dispensing Technologies
- Dip Tank with Fluid Level Sensor and Pump
- Release Liner Take Up and Payout Reels
- Drying Tower(s) with Temperature Sensing in 6 Zones
- Vision Inspection of Dispensed Lines with Bad Part Marking
- Environmental Enclosure for the Dispense Module and Take Up Reel
- Humidity Control for the Take Up Enclosure
- Ultra Low Tension for Low Tensile/Fragile Materials
- Custom Modules and Features

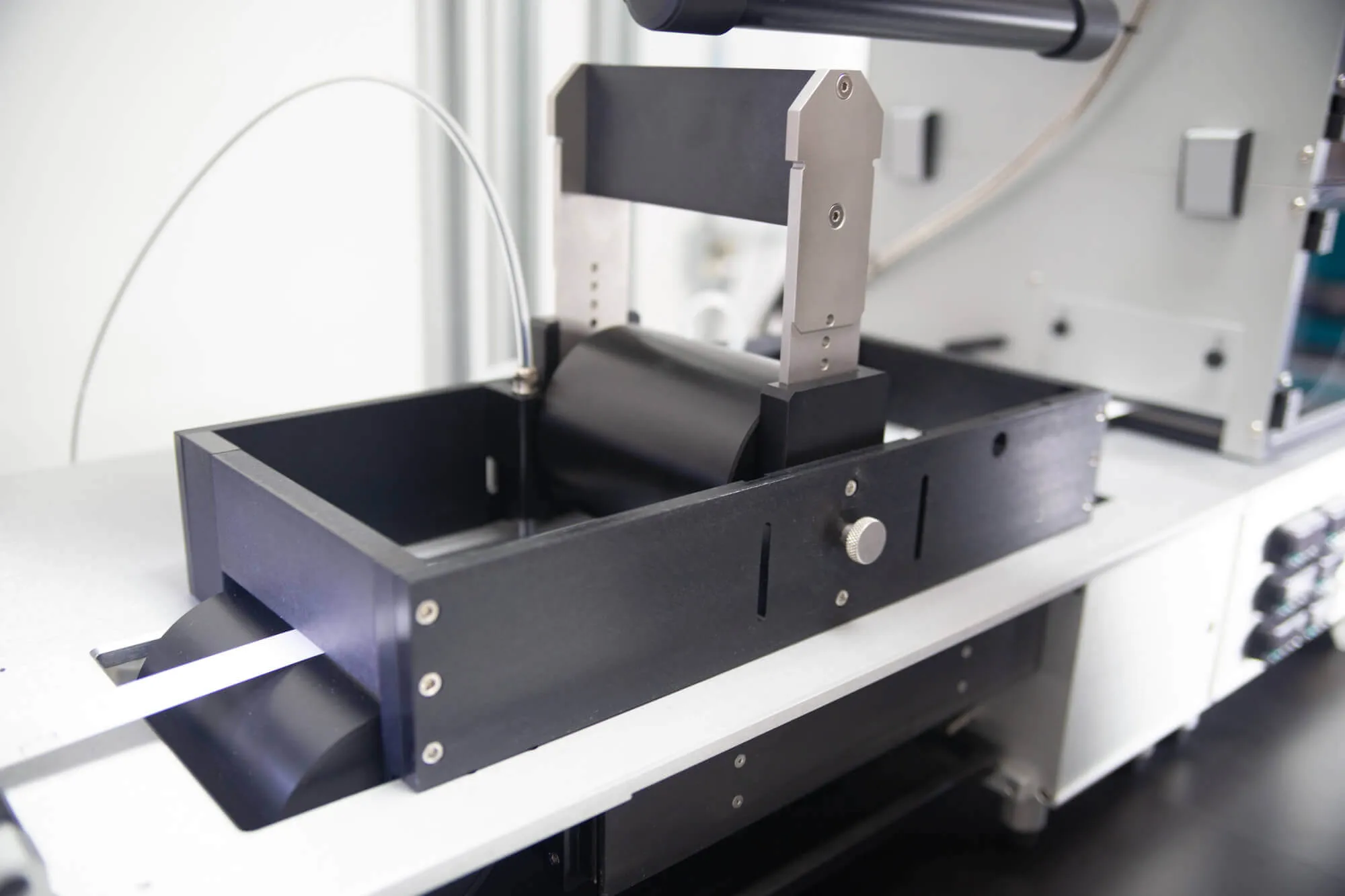

Dip Tank
Coat/Saturate Materials
This option offers full saturation of a material by running materials through a dip tank. An integrated fluid level sensor monitors volume and refills the tank using a peristaltic pump.

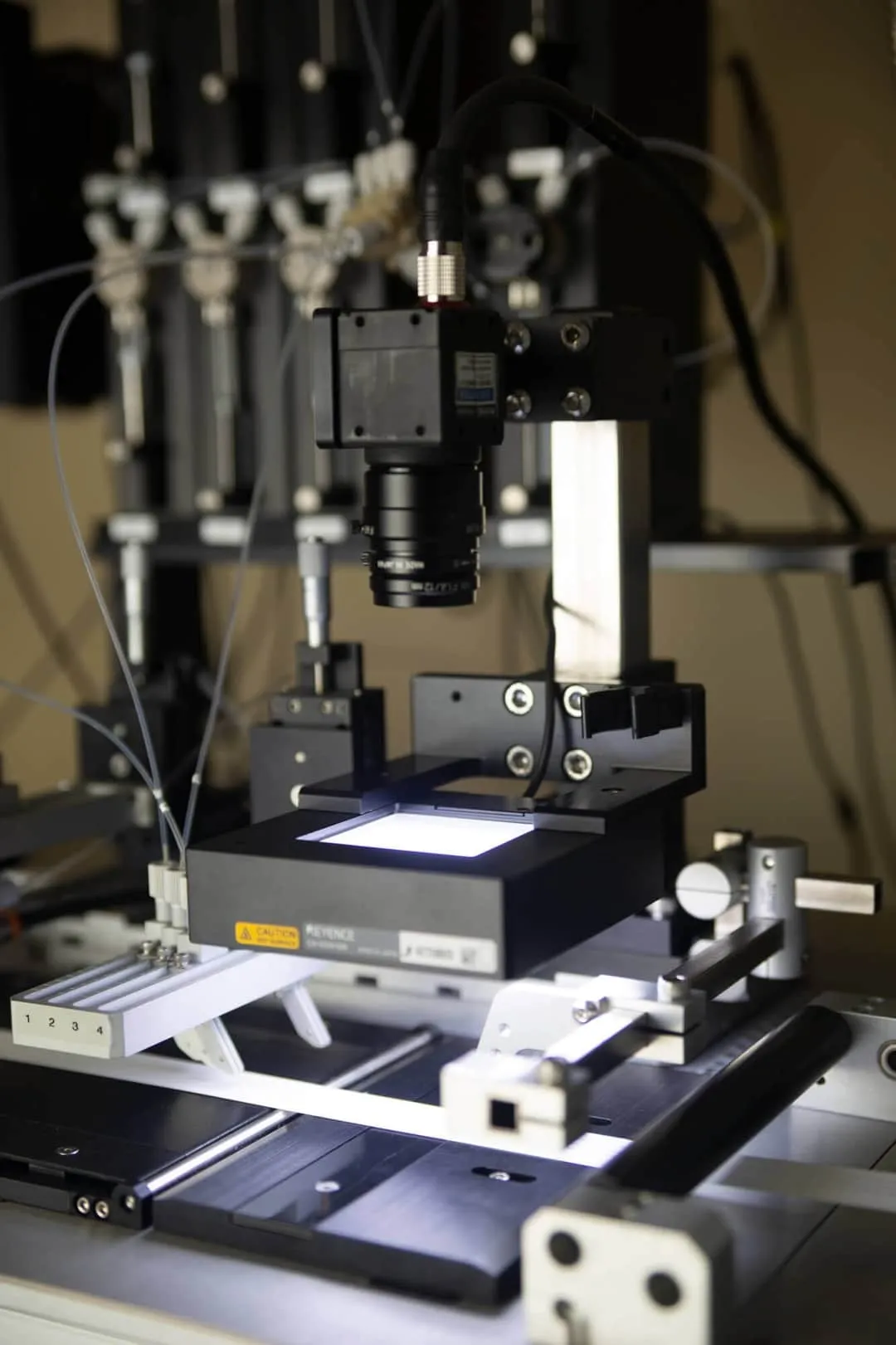

Vision QC
Improve Quality Control and Increase Throughput
This option performs 100% in-process inspection of printed lines on membranes. Monitor presence, width, and position and ink mark out-of-range parts.

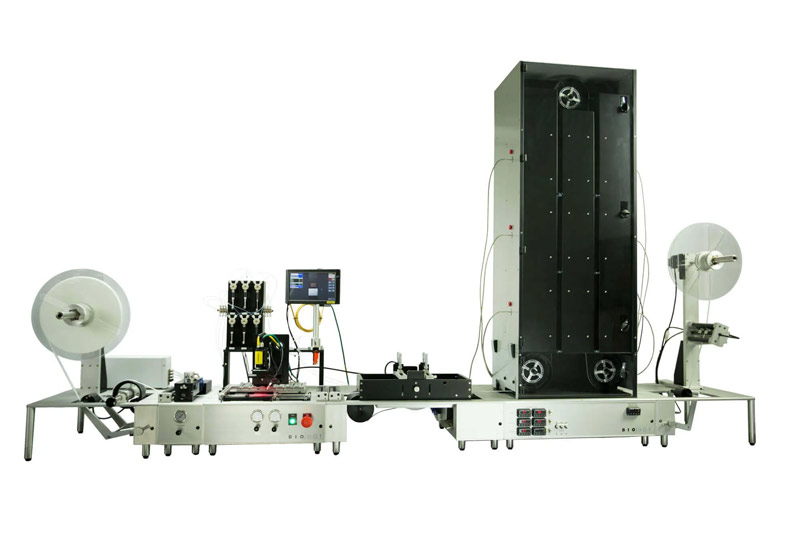

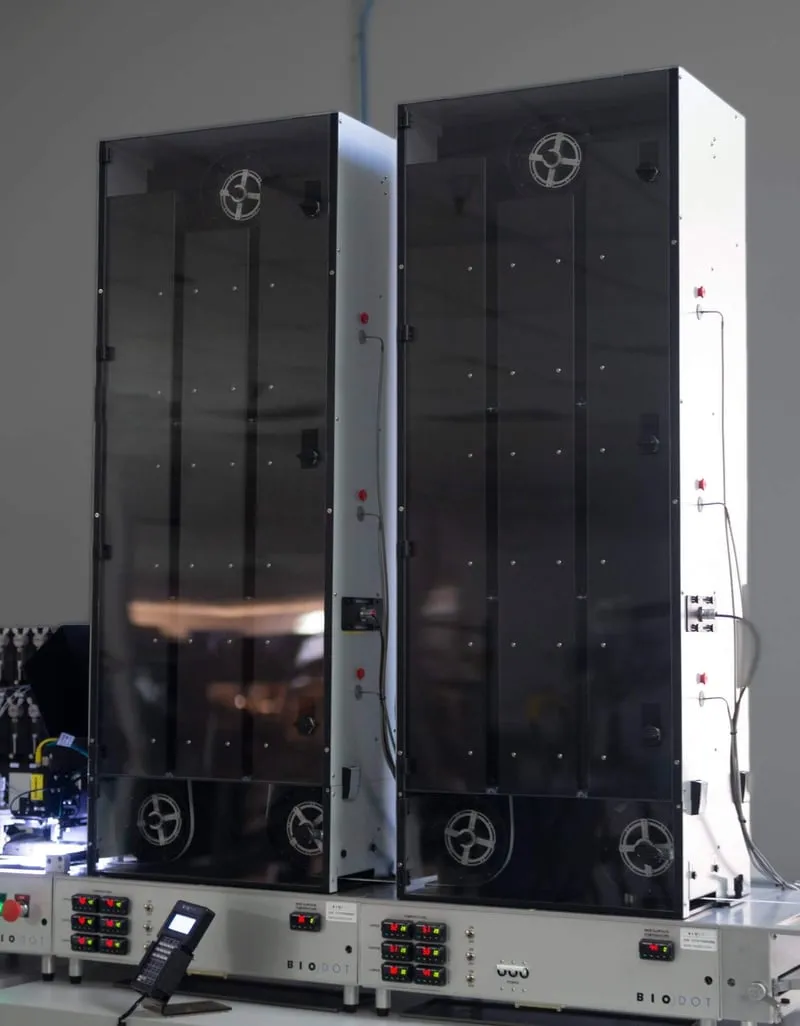

Dry Tower
Maximize Drying Efficiency
Optimize drying by setting 6 temperature control zones along the web path. Multiple dry towers can be placed in line to increase speed and throughput.
